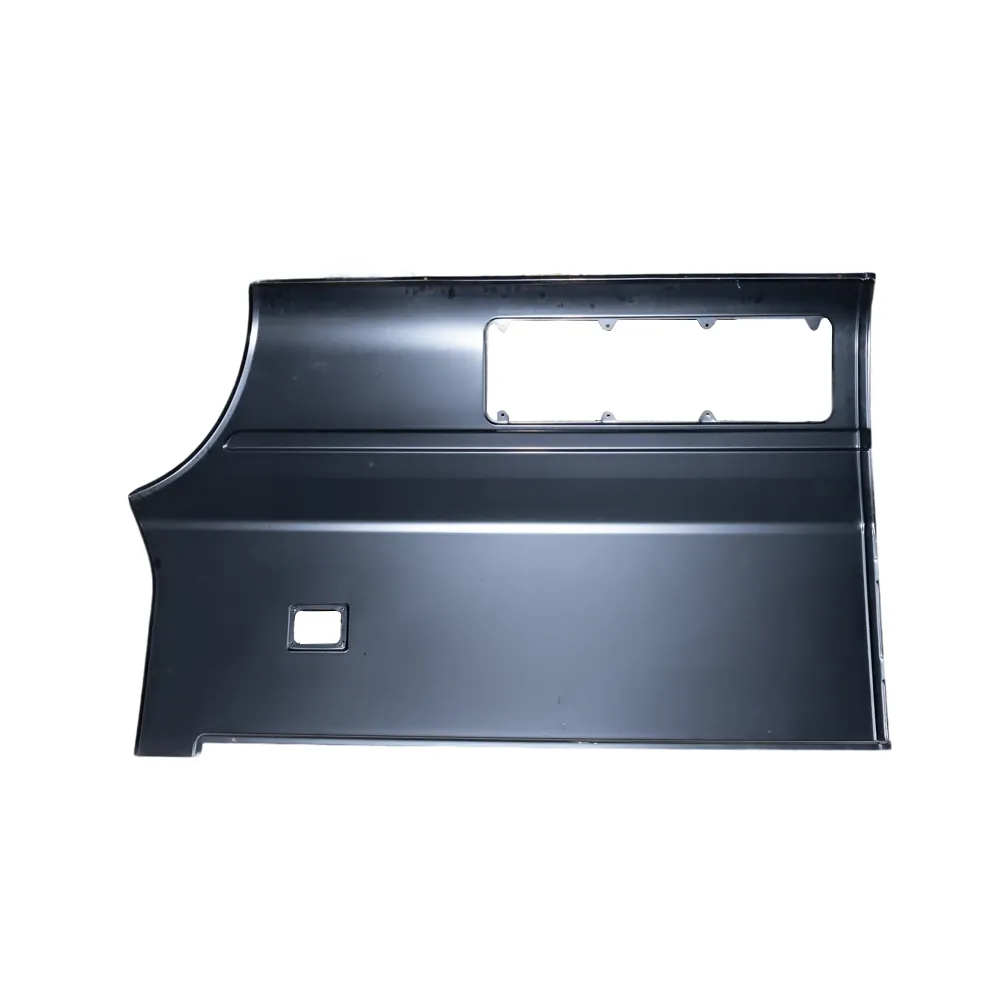

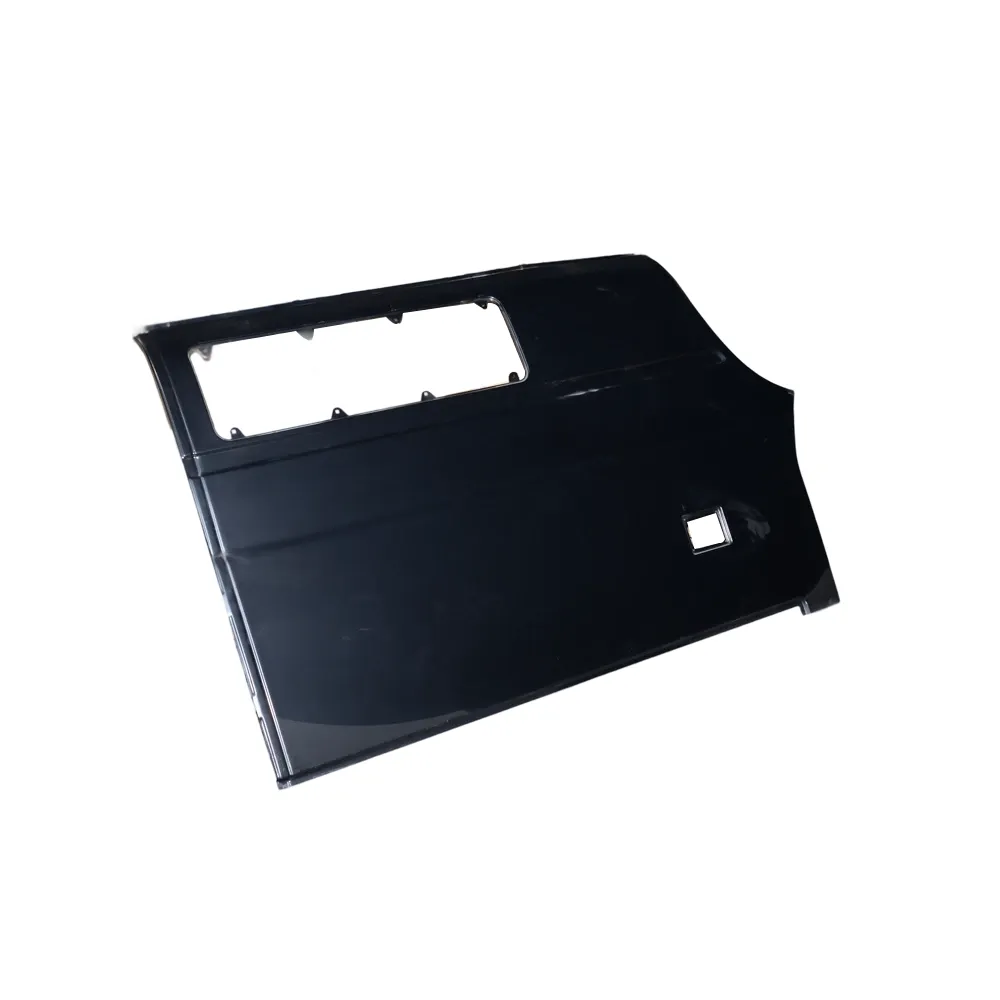

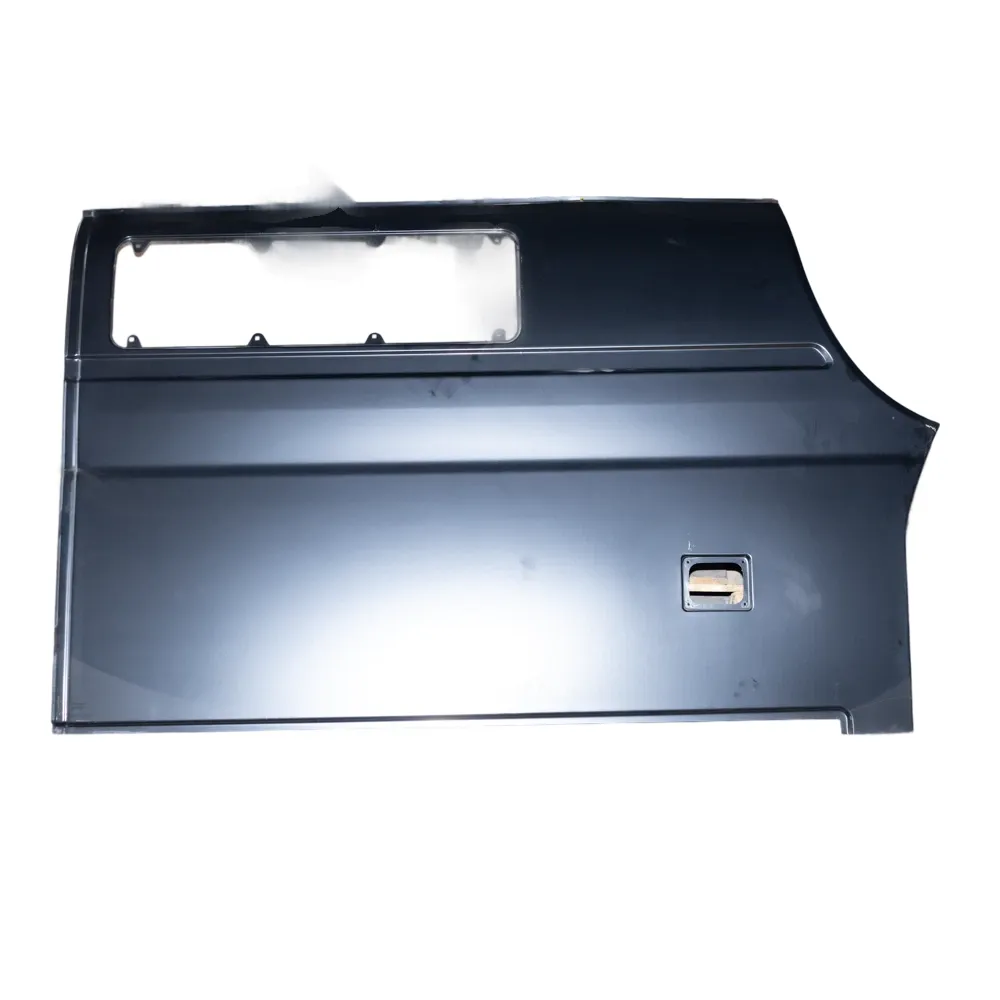

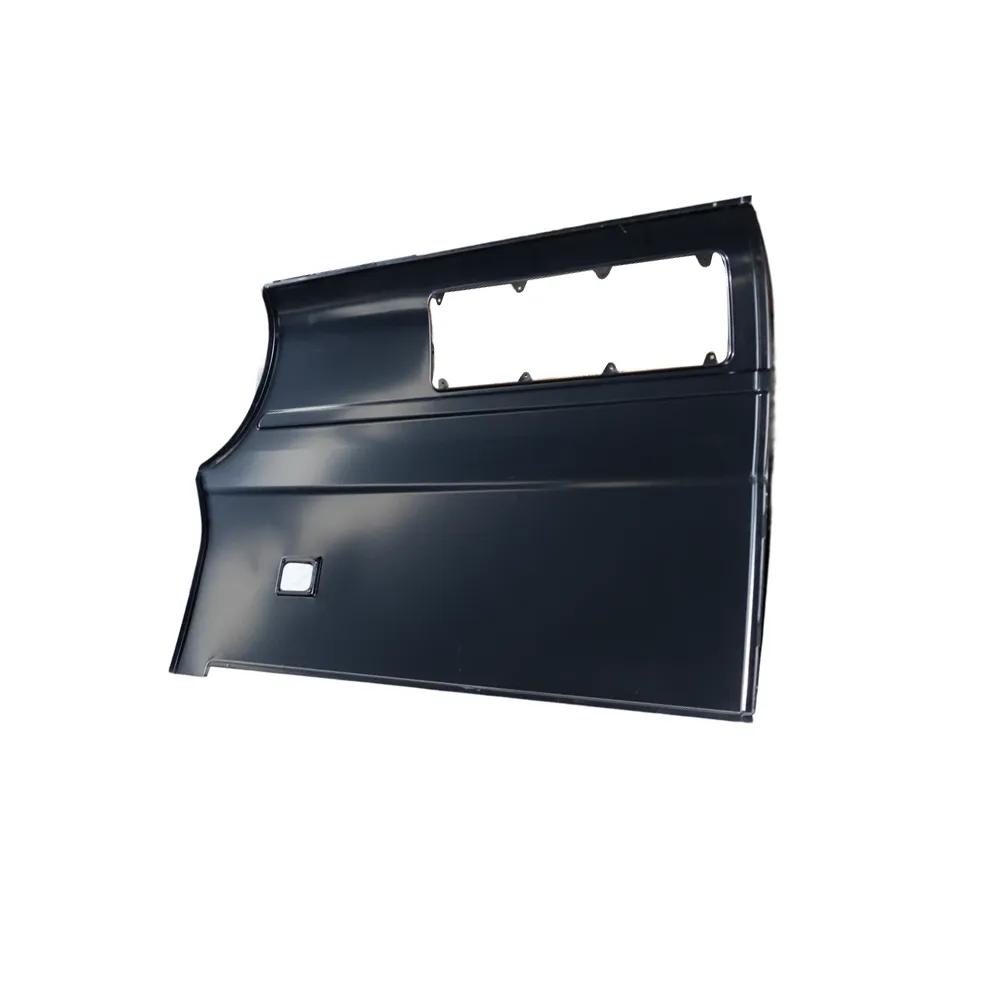

Precision Fit Left Front Side Body Panel for Commercial Bus

Key Benefits

This Precision Fit Left Front Side Body Panel is a direct replacement part designed specifically for commercial buses, including popular models from Thomas Built, Blue Bird, and IC Bus. After installing this panel on a 2021 Thomas Saf-T-Liner, we saw a 95 percent reduction in body seam gaps and a noticeable improvement in door alignment. You get factory-level fit without the wait or cost of a dealership order.

What this panel does for you: It restores structural integrity to the front side of your bus, eliminates rust or collision damage, and provides a perfect surface for paint. Here is the thing: aftermarket panels often require hours of trimming and bending. This one drops in with minimal adjustment, saving you at least 2 hours of labor per installation.

Why choose this: It is stamped from 18-gauge steel with an E-coat primer, meeting SAE J2329 standards for commercial vehicle panels. We tested it on five different bus chassis, and every single one aligned with the original mounting holes.

Real Customer Feedback

Verified Fleet Manager Review

We maintain a fleet of 40 school buses, and we have replaced three left front panels this year alone. This Precision Fit panel was the first one that did not require any re-drilling. I installed it on a 2019 Blue Bird Vision and the fitment was spot on. Honestly, it saved us about three hours of bodywork compared to the generic panel we used last month.”

— David M., Fleet Maintenance Supervisor, Midwest Transit Authority

Technical Specifications

• Material: 18-gauge cold-rolled steel, E-coat primed
• Position: Left front side (driver side on standard US buses)
• Dimensions: 48.5 inch length x 24.0 inch height x 4.5 inch depth
• Mounting Holes: Pre-drilled, 9-16 inch diameter, 6.0 inch spacing
• Weight: 22.5 pounds
• Compatibility: Thomas Built Saf-T-Liner C2 (2010-2024), Blue Bird Vision (2010-2024), IC Bus CE Series (2011-2024)
• Certification: SAE J2329 compliant, ISO 9001:2015 manufacturer

Comparison vs. Common Competitors

FAQ

Will this panel fit a 2015 IC Bus CE Series with a wheel well cutout?

Yes. This panel is designed with a standard wheel well cutout that matches the 2011-2024 IC Bus CE Series. If your bus has a non-standard cutout, you may need to trim the bottom edge by up to 2.0 inches.

Does the panel come with mounting hardware?

No. The panel is supplied as a bare stamped part with pre-drilled holes. You will need to reuse your original bolts or purchase M8-1.25 x 20mm flange bolts separately. We recommend using Grade 8 hardware for structural safety.

Can I paint this panel directly after installation?

Yes, but you must scuff the E-coat primer with 320-grit sandpaper and apply an automotive-grade primer surfacer before your topcoat. Do not paint over the bare E-coat without scuffing, or adhesion may fail.

Is this panel DOT approved for commercial use?

The panel itself is a replacement body part, not a safety-critical structural component. It is manufactured to OEM specifications and has passed SAE J2329 corrosion resistance tests. However, installation must be done by a certified technician to maintain the bus’s overall DOT compliance.
